IKEA PLATSA Spare Parts: Understanding the System Before Ordering

The PLATSA is the modular wardrobe that IKEA designed for everything the PAX cannot do: adapt to a sloped wall, install under a staircase, combine in width and height without format constraints. Since its launch around 2018-2020, it has attracted attention for its lightness and price — but also for an assembly logic radically different from anything IKEA had offered before. What also changes is the way it is repaired. Before ordering anything, there is one thing to understand: the PLATSA is a closed world. Nothing that makes it up is interchangeable with another range.

---

What You Really Have at Home: PLATSA Variants

The PLATSA is not a wardrobe. It is a system of open structures that you close, organize and combine as you see fit. To find the right part, you must first identify exactly which structure you have.

The frames come in two main widths — 60 cm and 80 cm — and two depths: 40 cm or 55 cm. The 55 cm depth is the wardrobe version, the most common for a walk-in closet. The 40 cm version is more compact, often used for living room storage or for SMÅSTAD combinations in a child's bedroom.

Width	Depth	Available Heights	Typical Use
60 cm	40 cm	40, 120, 180 cm	Compact storage, children's combinations
60 cm	55 cm	40, 60, 120, 180 cm	Walk-in closet, bedroom wardrobe
80 cm	40 cm	60, 180 cm	Wide storage
80 cm	55 cm	60, 120, 180 cm	Large wardrobe, walk-in closet

Heights of 40 cm and 60 cm are lower modules, designed to be stacked above or below other structures. The height of 180 cm covers from floor to standard ceiling. The height of 120 cm is the intermediate version, often used with a lower module underneath to create custom compositions.

Doors and fronts are not part of the structure. They are ordered separately and then attached to the frame. The most common door models on the PLATSA are the FONNES (plain, available in white and grey) and the SANNIDAL (with molding, available in white). The colors of fronts available are deliberately limited compared to the PAX — the PLATSA embraces a more understated aesthetic.

For SMÅSTAD/PLATSA combinations, intended for children's bedrooms, IKEA uses PLATSA structures as a base by combining them with SMÅSTAD fronts (rounded corners, pastel colors). These combinations have their own instructions and their own references — make sure the part you are looking for belongs to the PLATSA part of the combination, not the SMÅSTAD part.

---

The Absolute Trap: PLATSA is Not Compatible with PAX

This is the most important point on this page, and the one that generates the most ordering errors.

The PLATSA and the PAX look similar from a distance: two IKEA wardrobe systems, white, modular. In reality, no part is interchangeable between the two ranges. Neither the frames, nor the doors, nor the hinges, nor the rails, nor the shelves, nor the dowels.

Why? Because the two systems are based on completely different panel thicknesses and assembly systems. The PAX uses screws and cam locks (those famous quick-release dowels). The PLATSA, on the other hand, uses wedge dowels — a completely different technology detailed in the following section.

In practice: if someone offers you "an IKEA wardrobe hinge that should fit", be careful. The only certainty is a part explicitly referenced for the PLATSA. PAX hinges will not work on a PLATSA frame. BERGSBO or GRIMO doors from the PAX do not have the right dimensions for the PLATSA. PAX sliding rails cannot be mounted on a PLATSA structure.

---

The Assembly System: Wedge Dowels

This is the central innovation of the PLATSA, and the one that explains both its strength and the problems encountered when a part is missing.

The traditional IKEA system (cam lock + round dowel) requires a screwdriver or Allen key. The PLATSA uses instead a wedge-shaped dowel ("wedge dowel") which is inserted into a housing and locked by lateral pressure — without tools, without rotation. When everything is in place, it clips. To disassemble, press on the tab and the wedge is released.

This mechanism offers two real advantages: assembly is much faster, and disassembly/reassembly during a move is much less destructive than on a cam lock furniture. Disassembling and reassembling a PAX several times ends up tearing the wood. On a PLATSA, the system tolerates repeated handling better.

The problem arises when a wedge dowel breaks or is lost. These dowels are not replaceable by standard hardware. No hardware store reproduces this profile exactly. The only solution is to order the original PLATSA dowel via IKEA Service Parts. Carefully keep the surplus dowels you recovered during assembly — they serve exactly this purpose.

The joining clips between structures (the clamps that assemble two PLATSA frames side by side) work on the same principle: no tools, hand insertion. These clips are also PLATSA-specific parts.

---

HJÄLPA Hinges: The Most Requested Part

On PLATSA with hinged doors, the part that wears out or causes problems first is almost always the hinge. And the PLATSA hinge is the HJÄLPA.

There are two versions: the HJÄLPA standard and the HJÄLPA soft-close (soft-close). The soft-close version incorporates a hydraulic damper that slows down the door at the end of its course. Over time, this damper can lose efficiency — the door starts to slam, or conversely remains half open without returning to position. This is a sign that the hinge needs to be replaced, not just adjusted.

HJÄLPA are sold in packs of 12, which may seem excessive if you only break one. But a standard PLATSA wardrobe generally uses 8 to 16 hinges depending on the number of doors — depending on your configuration, a pack may barely cover the whole or otherwise leave you with a few spare parts. In either case, this is the unit of sale: there is no single packaging.

Before ordering hinges, check if an adjustment is possible. HJÄLPA have adjustment screws on three axes: lateral (to correct a gap between two doors), depth (to bring the door closer to or further from the frame) and height (to align the doors with each other). A door that does not close straight or rubs slightly is often an adjustment problem, not a defective hinge.

A problem reported by several users: during the first assembly, the screws of the HJÄLPA can be difficult to engage in the PLATSA panel. The panel is less thick than on other ranges, and the resistance is greater. Do not force — if the screw slips, the angle of attack is wrong. Reposition the hinge in its housing and start again.

---

Sliding Doors: Rollers and Rails

Some PLATSA configurations are sold with sliding doors. The mechanism is different from hinged doors and involves other parts.

The rollers are the wheels that allow the door to slide in the rail. They support the weight of the door and wear out gradually. Typical symptoms: the door resists opening, derails at the end of its course, or produces a continuous friction noise. In most cases, it is the roller that is the cause — worn, flattened, or come out of its groove.

The lower rail can also become clogged. Dust, hair, fabric debris accumulate in the groove and end up blocking the rollers. Before ordering new rollers, clean the rail with a vacuum cleaner and a small brush. This is often enough to restore smooth sliding.

As with hinges: PLATSA rollers and rails are proprietary parts. PAX references do not correspond.

---

Other Parts That Fail

Internal shelves are shelves that you position freely inside the frame using pegs. If a peg breaks or disappears, the shelf will no longer hold. PLATSA pegs are not universal — order the references specific to the range.

Drawers can be mounted inside PLATSA frames (drawers from the PLATSA range, not from the KOMPLEMENT range which is reserved for the PAX). If a drawer slides poorly or comes out of its slides, first check if the slide is warped — this is often what happens during a shock or excessive load. The slide itself can be ordered separately.

The wardrobe rail adapts to the depth of the frame. A 55 cm deep frame accommodates a wardrobe rail in the direction of the width. Check the reference of the rail — there are several lengths depending on the width of the frame (60 cm or 80 cm).

---

Practical Tips

Photograph your configuration during assembly. The PLATSA is so customizable that two PLATSA wardrobes can have radically different internal configurations. A photo allows you to quickly find out which parts you actually have.

Keep the assembly instructions. It contains the article numbers and the exact variants you used. Without it, identifying the correct replacement part can become a headache.

Do not order PAX hinges for your PLATSA. This confusion is the primary source of ordering errors on this range. The two systems use different hinges, even if they look alike.

For structures screwed to the wall: the 55 cm deep PLATSA should not be suspended from the wall. It must rest on the floor or on another frame placed on the floor, then be fixed to the wall from the top for stability. Do not modify this principle — a 180 cm structure filled with clothes represents a significant load.

---

FAQ

Can you mix PLATSA frames of different depths in the same composition?
Yes. This is one of the strengths of the system. A 60x40 cm frame can be assembled next to a 60x55 cm frame with PLATSA joining clips. However, the door covering the whole must correspond to the depth of the structure on which it opens.

Are FONNES and SANNIDAL doors interchangeable on the same frames?
Yes. The two PLATSA hinged door models are designed for the same frames. You can replace a FONNES with a SANNIDAL and vice versa, provided that the dimensions (width x height) correspond.

My wedge dowel is broken. Can I replace it with an ordinary dowel from the trade?
No. The profile of the PLATSA wedge dowel is specific to the system. A standard round dowel will not lock into the housing provided. You must order the original PLATSA dowel.

I have a PLATSA with sliding doors. Are the rollers the same as those of a PAX sliding door?
No. The rollers, rails and carriages of the two systems are different parts and not interchangeable. Order only PLATSA references.

My PLATSA wardrobe creaks when I open it. What is the cause?
On a hinged door, the creaking almost always comes from the hinge — a metal/metal contact point that is insufficiently lubricated or slightly misaligned. First try to adjust the hinge on the three axes, then apply a small amount of silicone lubricant to the axes of rotation. On a sliding door, the creaking comes from the rail or the roller. Clean first.

---

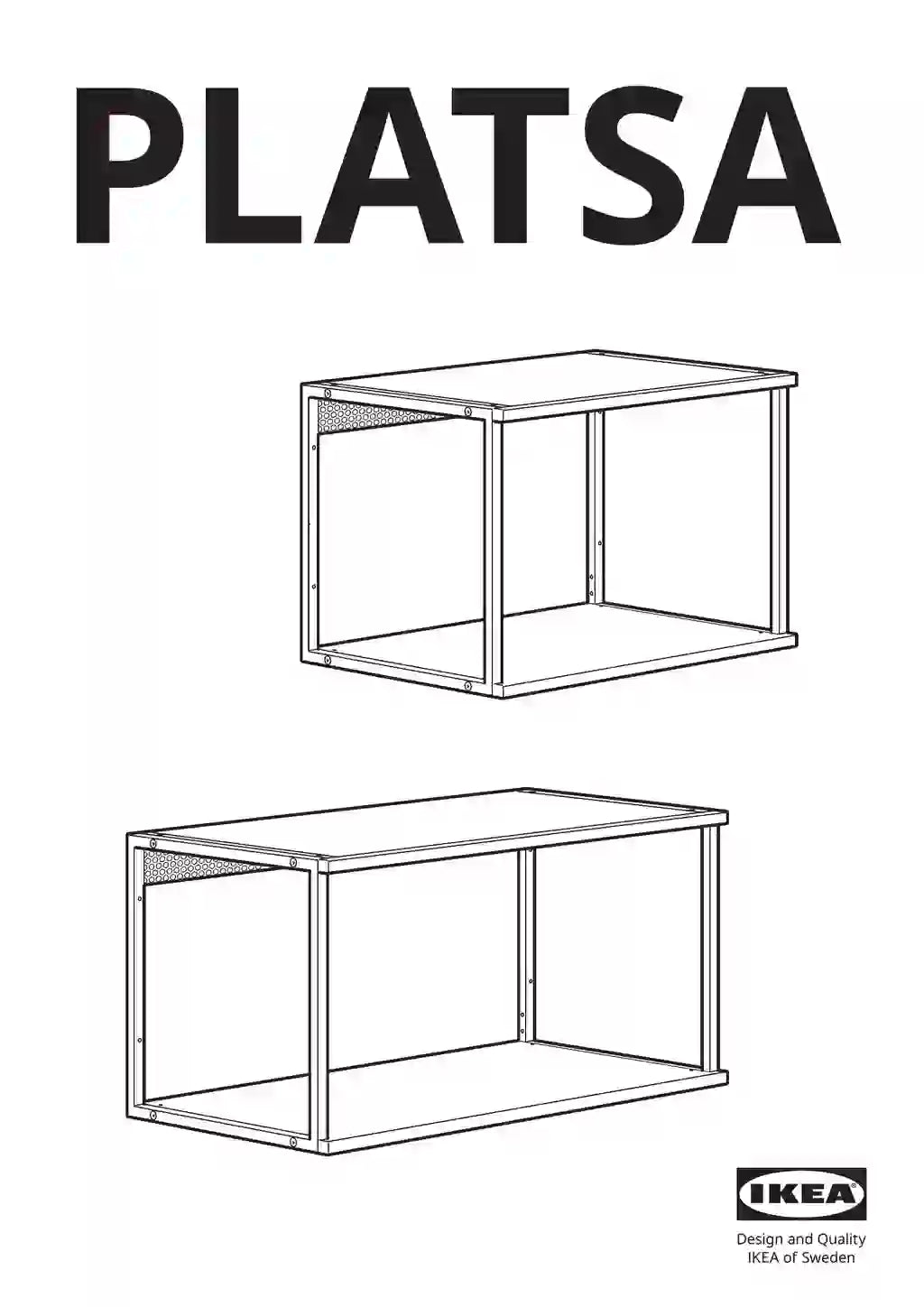

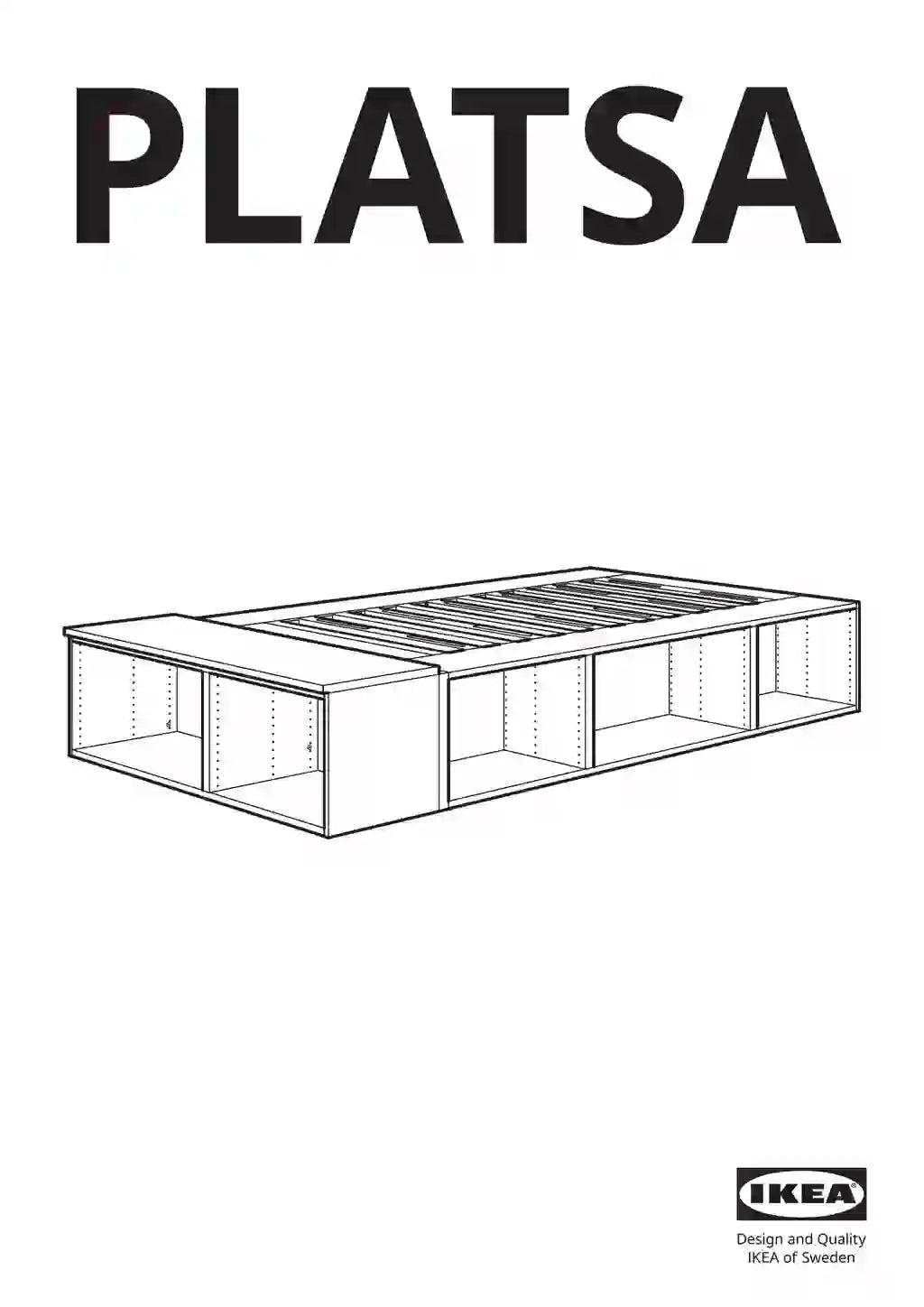

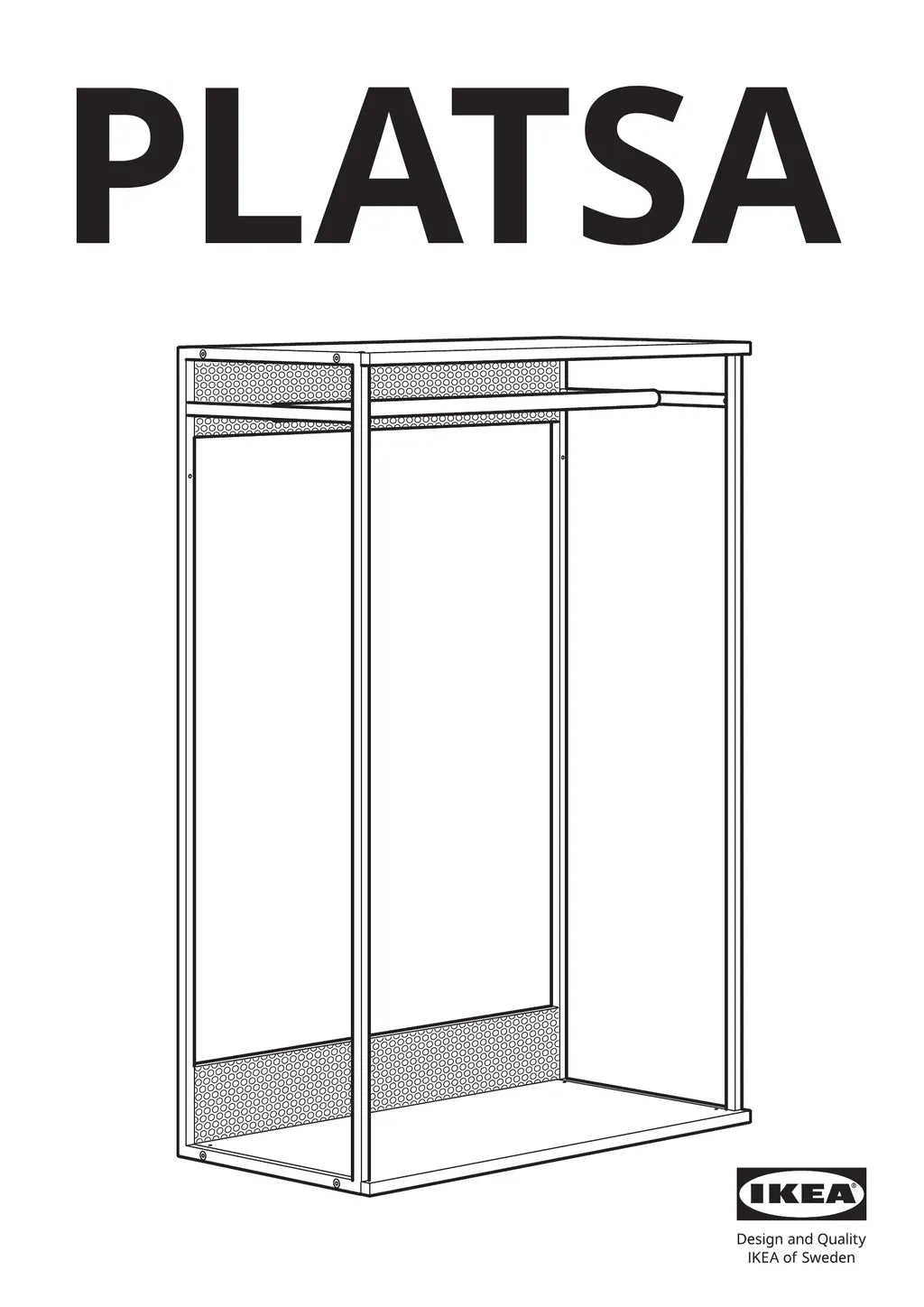

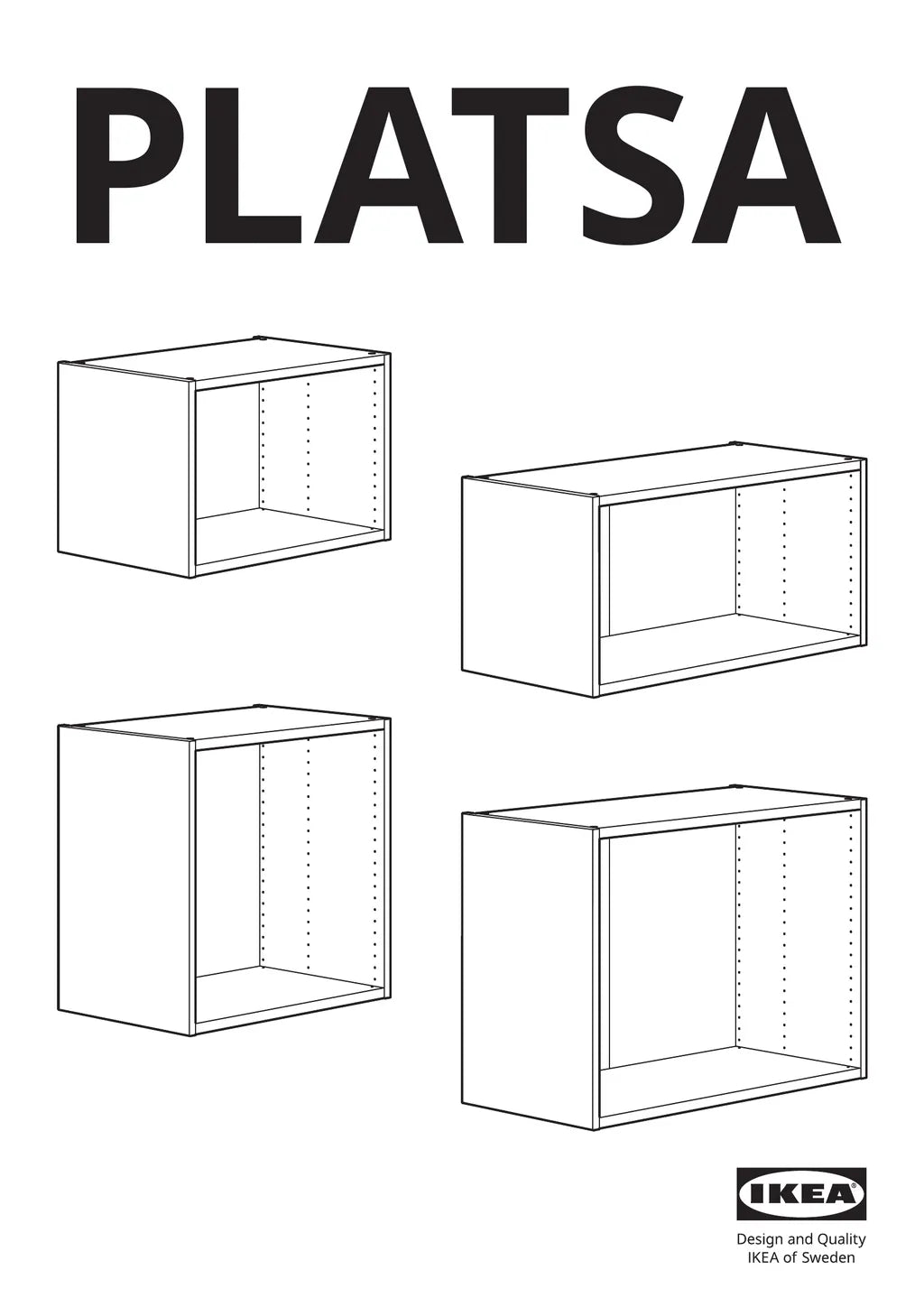

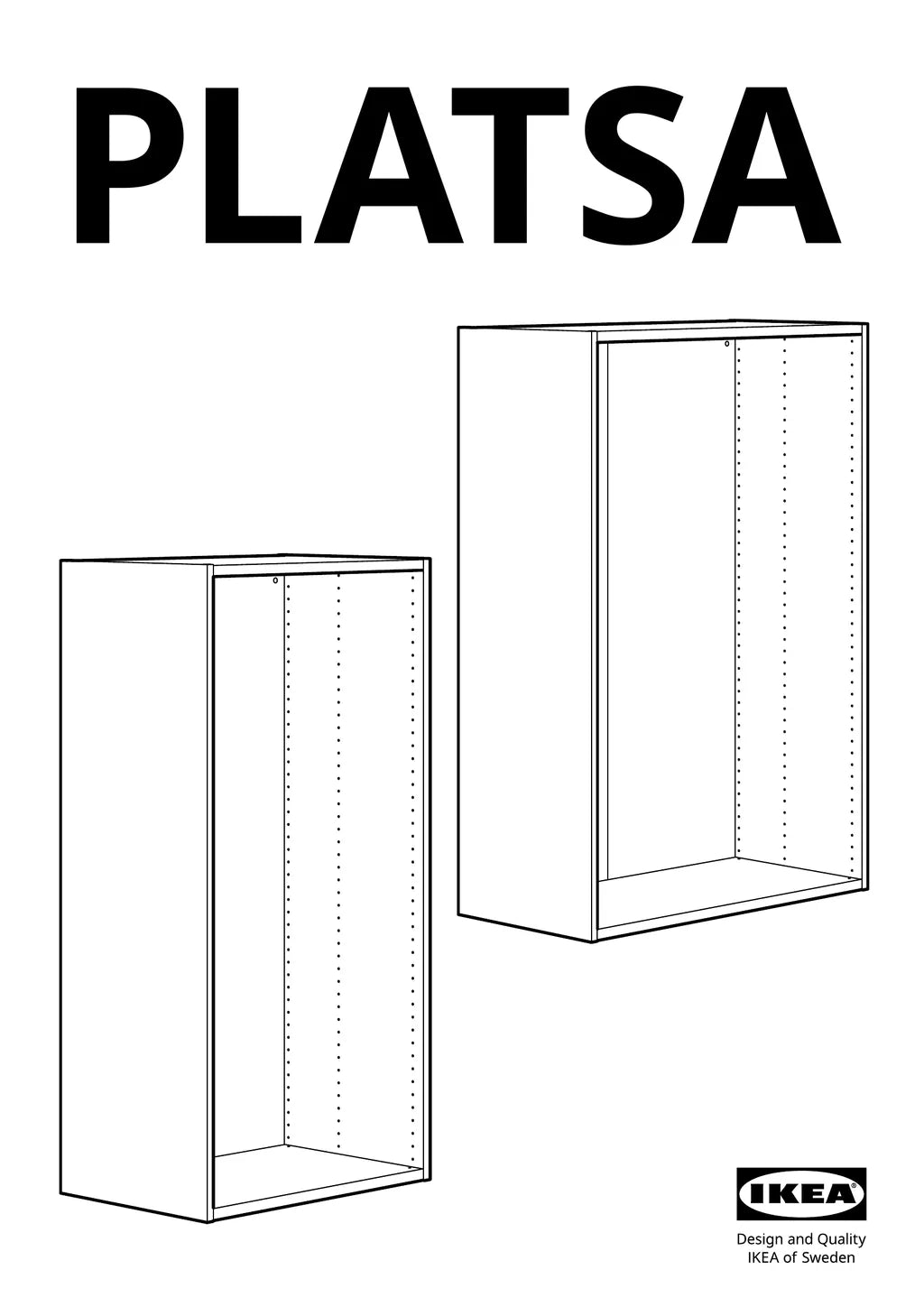

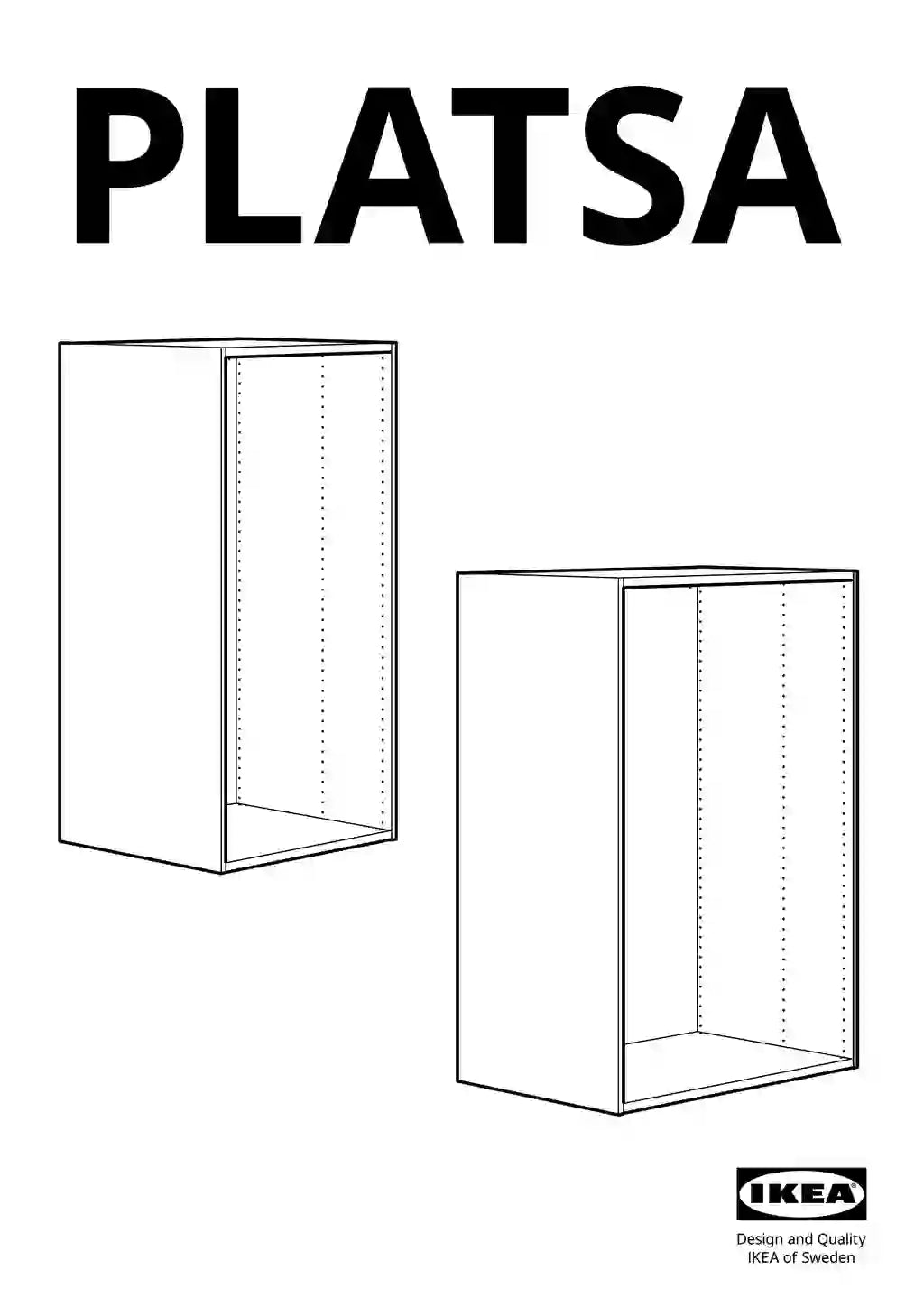

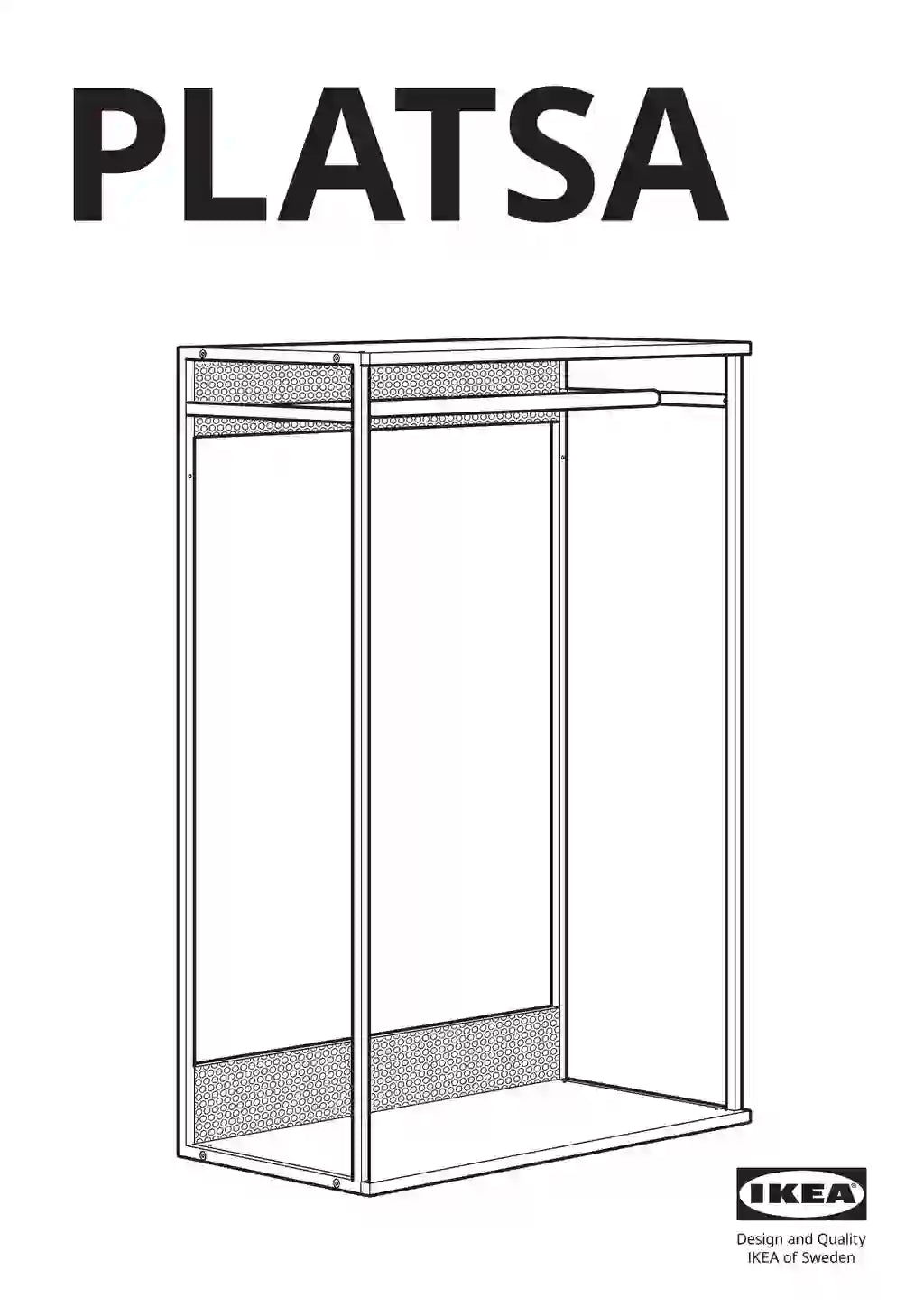

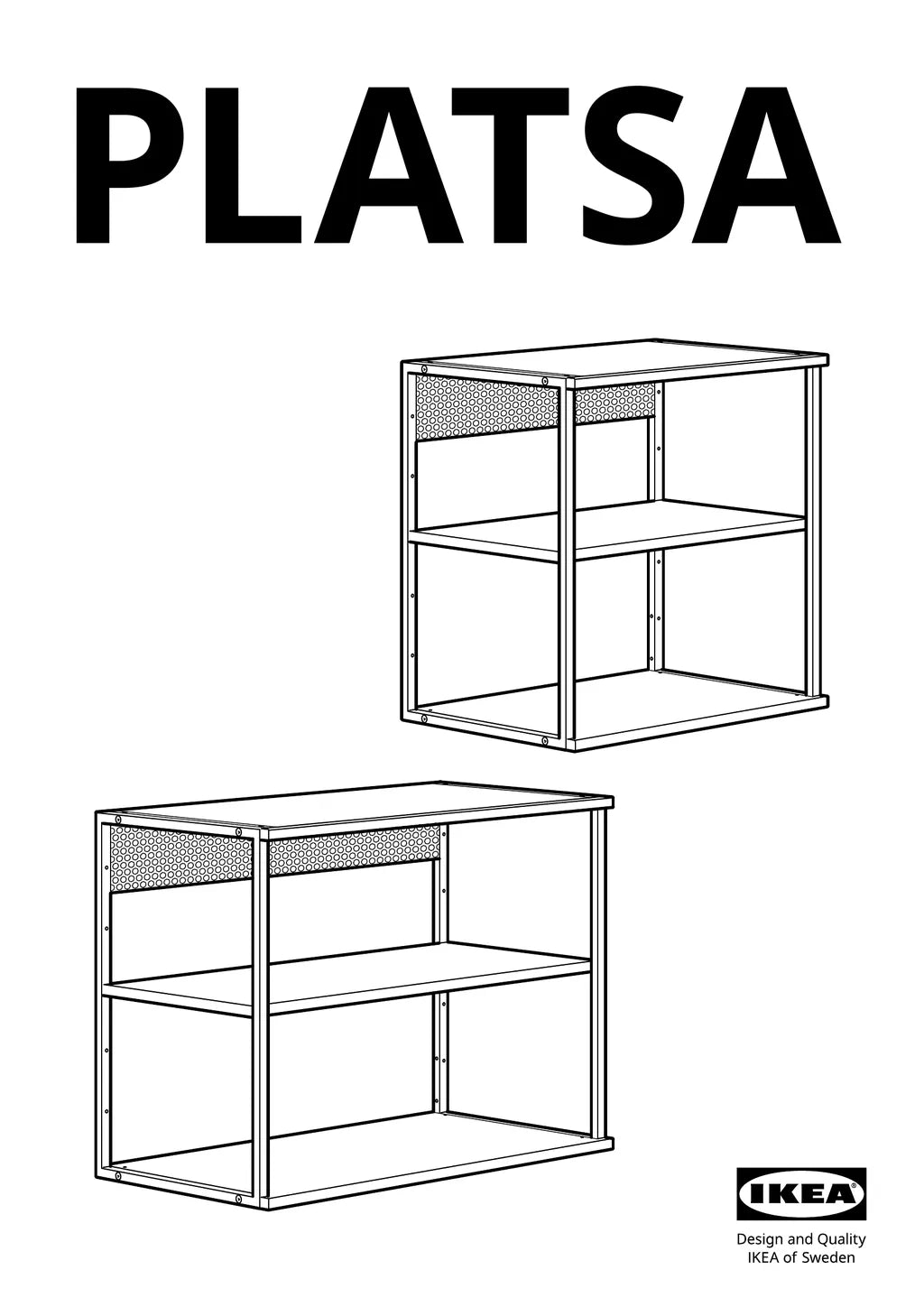

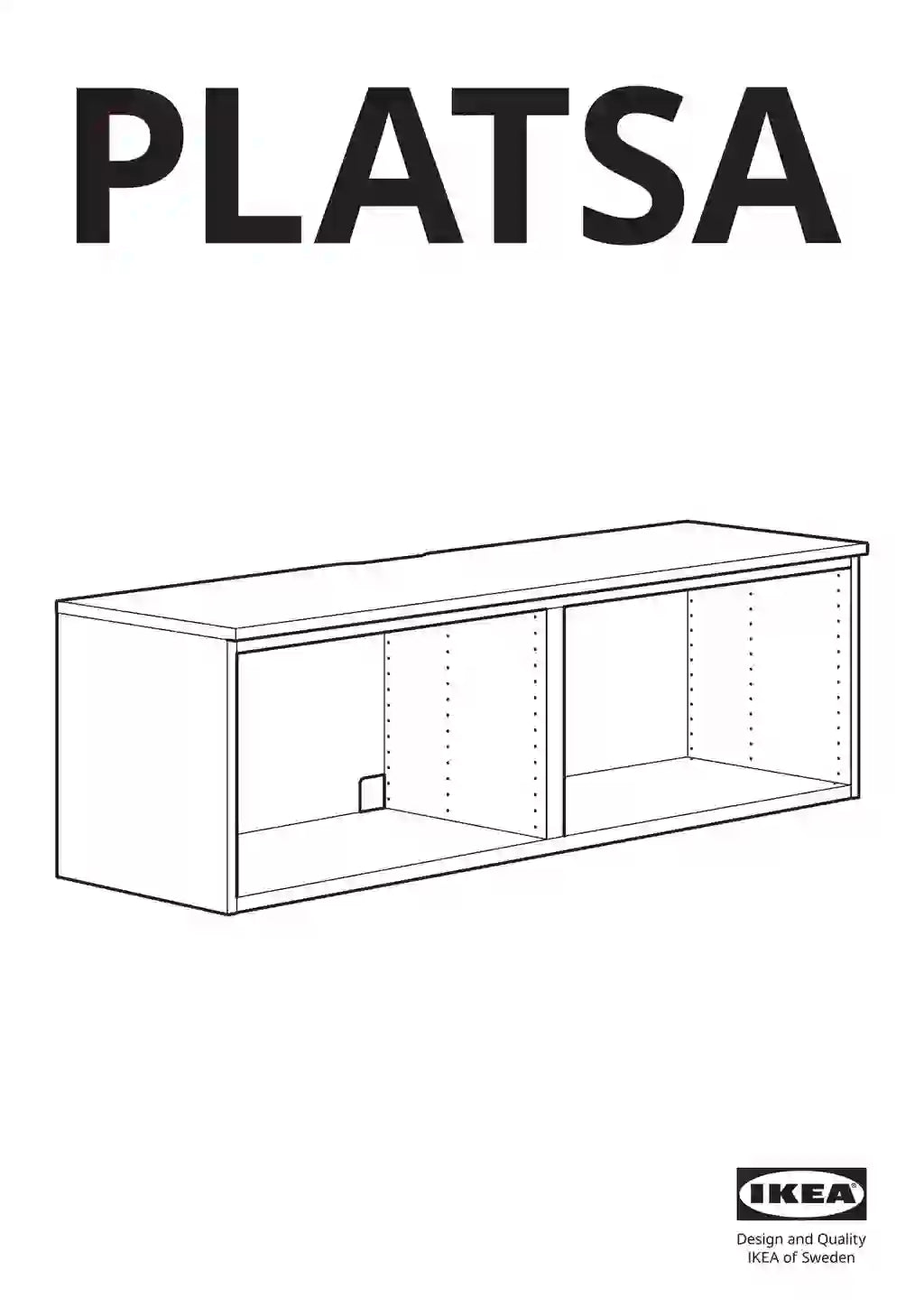

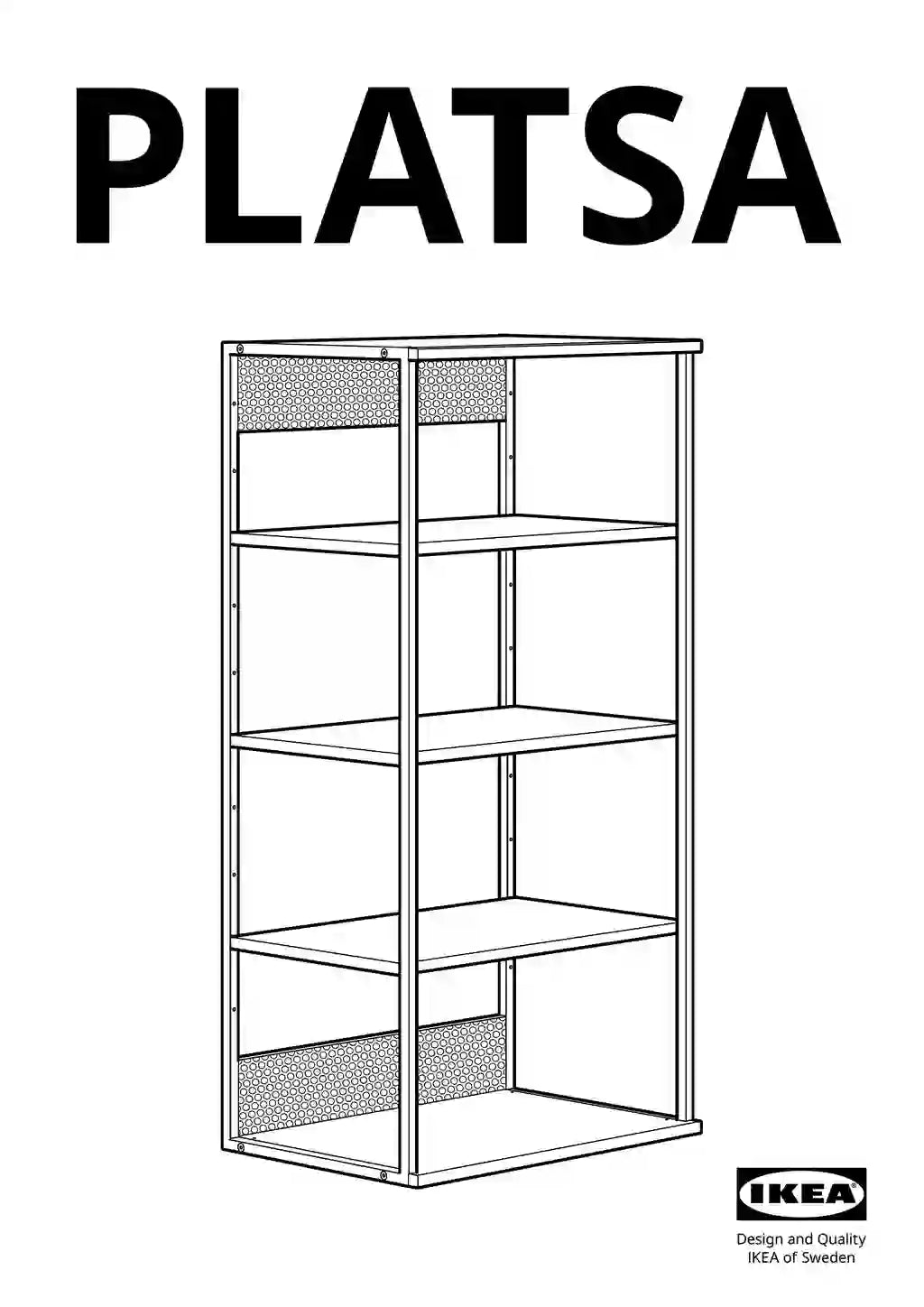

PLATSA assembly instructions and available spare parts are displayed directly on this page. Identify your configuration, locate the correct reference, and order without the risk of confusion with another range.
